| Engine |
Hatz 4H50TIC, 1952 ccm, 73,4P (54 kW), at 2800 r/min |
| Fuel |
diesel, capacity 105 liter |
| Electrical system |
12 V, battery 90 Ah |
| Steering |
strong standard mechanical steering, on request hydraulic steering |
| Drive / brake system |
hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake |
| Wheels |
front: 195/70 R15 – 5-hole-rim / rear: 215/70 R14 – 6-hole-rim |
| Compressor |
Boge screw type compressor Typ CM32, effective air supply 2400 l/min, mechanically driven by poly-v-belt |
| Operating air pressure |
7 bar, silenced safety valve |
| Paint pressure tank |
front: 400 ltr. / rear: 400 ltr., with agitator, other container capacities on request |

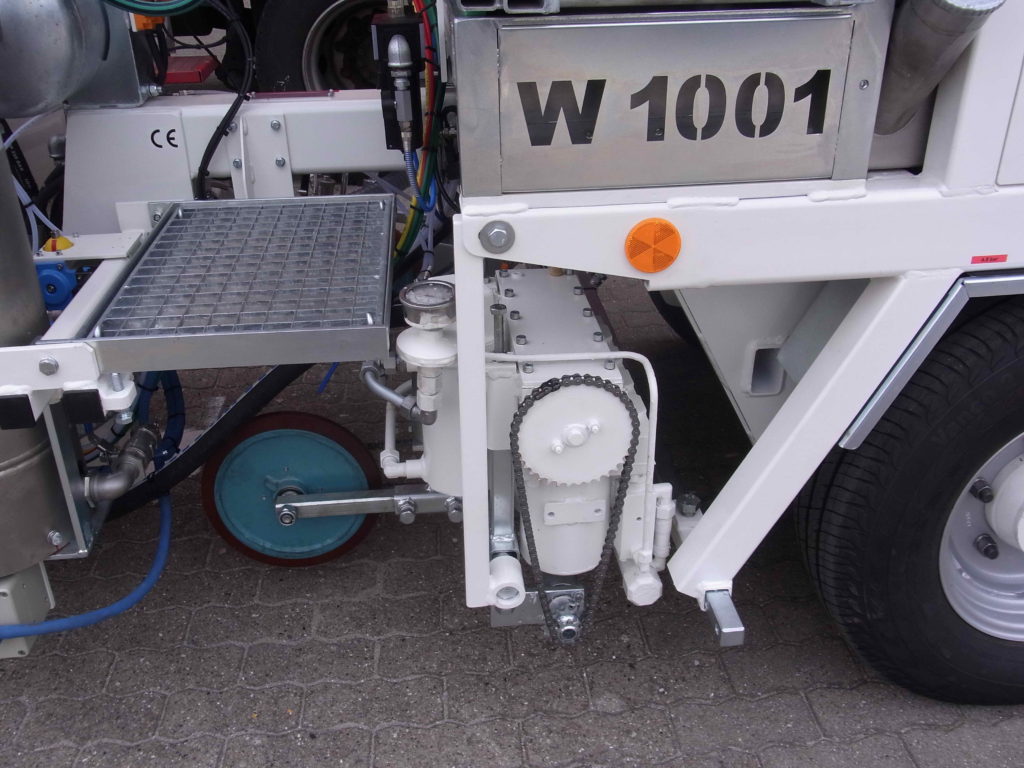

| Paint pump |
Airless doublepump, 22 ltr/min, mixture ratio 98 : 2 |
| Marker unit |
units discless |
| Glass bead equipment |
on request, metering bead dispenser up to 300 mm |
| Empty- / total weight |
approx. 3000 kg / 5800 kg |
| Dimensions (L*W*H) |
approx. 5,50 m* 1,50 m* 2,20 m (without equipment) |
